Full automatic core roll paper packaging machineWBP-RC
Toilet Paper Roll Packaging Machine(2 rolls,4 rolls,6 rolls,12 rolls)

Detailed introduction

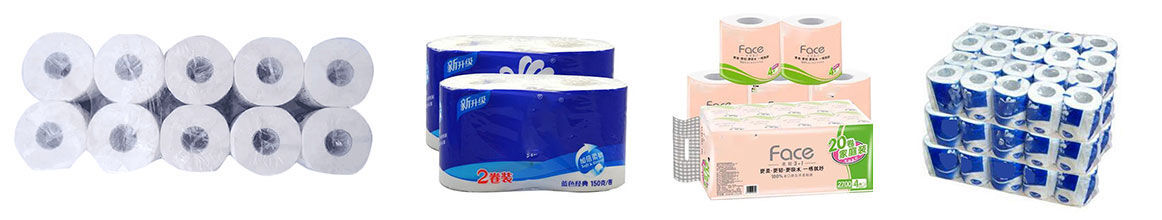

Packing effect


Core oll paper middle bag packing machine features

1. This machine is used for the packaging of vertical roll toilet paper. It is an automatic packaging machine that integrates bagging, bagging, sealing and cutting. It has an air blowing function, which can blow off the tail material. The packaging and sealing effect is beautiful and neat.

2. Adopt advanced PLC computer programming control, touch screen display parameters, easy to set and more accurate temperature control.

3. Accurate control and positioning, automatic operation, the body with conveyor belt type can be connected with paper cutter or rotary/three-dimensional packaging machine to realize mechanized conveying, automatic bagging, the whole machine is faster, save labor, reduce production costs, Improve production efficiency.

4.The whole machine is reasonable in structure, stable in performance, firm in material and more durable; the main parts of the control parts are imported high-quality parts, and the others are high-quality parts of national standards.

Coreroll paper middle bag packing machine Technical parameters

Core roll paper middle bag packing machine
Air pressure0.6MPA
Total power0.75kw
Packing sizeDia.100-110mmLength:90-110mmNumber:10-12rolls
Machine Size4500mm*1100*1500mm
Packaging Speed6-7 packages/min

RFQ-How to get quotation

1.single package size:length*width*height(mm)



2.Seal Form


3.Packing type

Single packaging or Combined packaging(1x2,2x3,2x5,4x5,4x6...)


4.Into the bag method

By hand or Automatic?

5.Packaging Speed

How many bags per minitue?

6.packaging bag type

packaging bag type.jpg
