High speed cellophane wrapping machine 80pack/min

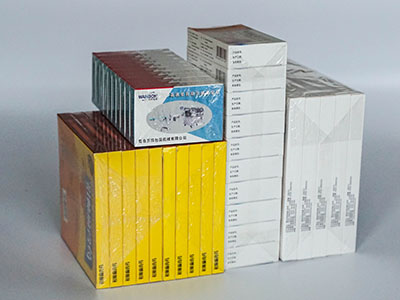

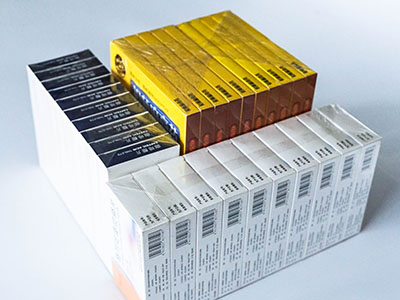

cellophane wrapping machine to wrap Large single box Or Multi boxes
Automatic feeding,stacking,standing, sorting,packaging,hot sealing,counting.
Special for Pharmaceutical heat sensitive products,health care products,and food Secondary packaging

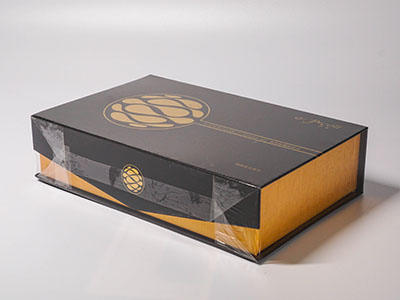

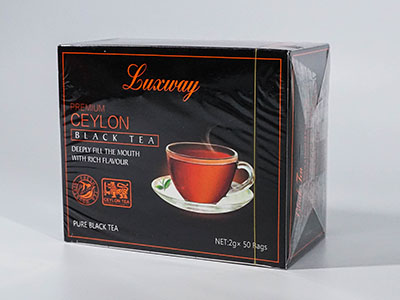

E.g Tea box overwrap,chocolage box overwrap,gift box overwrap

Detailed introduction

Applicable Packaging Materials

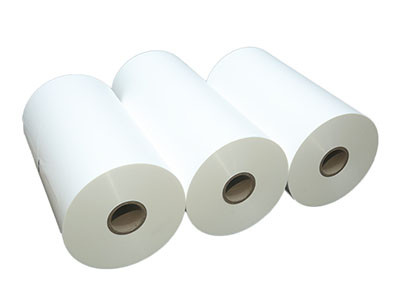

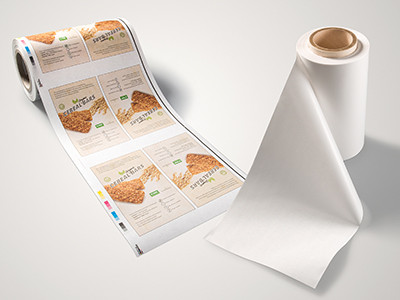

PaperPVCBOPP


Product features


New type high speed horizontal three-dimension full automatic overwrapping machine,adopt advanced PLC and control technology of multiple servo system,easy to operate and adjust,no static effect on the packaging film.it can automatically paste anti-counterfeit easy draw line,make the packaging more comprehensive and running more stable,the speed is faster and the effieciency is higher.It can be used in single machine or in combination with other machine.

It is the best choice of high speed packing line.All products meet the GMP standard


Main Specification


Max Film/paper width (mm)680
Packing size scope (L*W*H)(80-360)X(40-220)X(20-180)
Packing speed (bag/min)40-80
Packing materialBOPP/PVC/PAPER FILM/COTTON PAPER
Inner hole dia.mm/thicknessDia.75/0.021-0.028
Air consumption  L/Min20-30
Total power  kw3.25
Noise dB(A)<65d
Machine size mm1850x1150x1690
Machine weight kg1000
voltage220V,50HZ
Heating temperature ℃100-140

Maximum for this range,output speed depends on pack size.Other range,speeds and pack size capabilities are available


Machine options

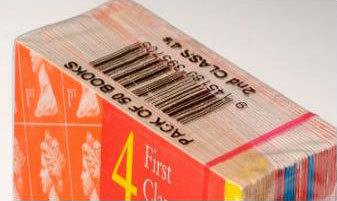

Tear tape
Separate Servo device

Dot end Seal

Spot ironing is suitable for a single variety, requiring a fixed position


 Print registation
Add a printer or a coder


Package Stype

Package Stype.jpg
