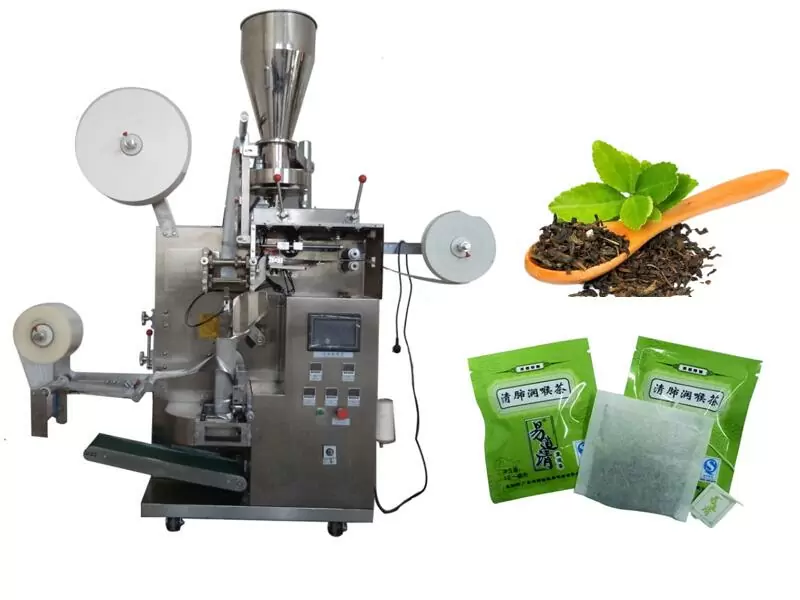

automatic double chamber tea bag packing machine with envelope
Automatic tea bag packing machine is Suitable for tea, medicinal tea, ginseng tea, coffee, Chinese herbal medicine, plants and other filter articles.

Detailed introduction


Characteristic of Tea bag packing machine

This machine is a new type of heat-sealed, multifunctional and fully automatic tea bag beverage packaging equipment.

The main feature of this machine is that the inner and outer bags are formed at one time, which avoids the direct contact

 between human hands and materials and improves efficiency. The inner bag is made of filter cotton paper, which can be

automatically wired and labeled, and the outer bag is made of composite paper. Its biggest advantage lies in that both

labeling and outer bag can be positioned by photoelectric positioning, and the packaging capacity, inner bag, outer bag

and label can be adjusted at will, and the dimensions of inner and outer bags can be adjusted according to different needs

of users, so as to achieve the best packaging effect, improve the appearance grade of products and enhance the value of products.



chamber bag packing machine.jpg

Technical parameter of double chamber tea bag packing machine

Packaging capacity

1-5g

Packaging speed(actural speed)

25-40 bags/min

Label size

Width: 45mm length: 20mm

Line length

155mm

inner bag

Width: 50-80mm length: 50-80mm,

Outer bag

Width: 70-100mm and length: 80-120mm.

Electric source

220V 60Hz110V 50HZ 1.18KW

External dimension

(L×W×H)1600×700×2000mm

Overall weight

500Kg
